Description
Light Gauge steel roll forming machine is the most popular machine and its product includes stud, track, furring channel, main channel (primary channel), carrying channel, wall angle, corner angle, edge bead, shadow line wall angle, top hat, clip, etc, our machine has an extensive use in Drywall system, Ceiling system and Floor system. Thickness is normally 0.4-0.6mm or up to 1.2mm. Raw material could be: cold-rolled steel, Galvanized steel, PPGI, high-tensil steel. The finished products meet IBC 2003, 2006 & 2009, AISI NASPEC (S100), ICC-ES AC86 (2010) etc. Simply the best light gauge steel roll forming machine for your project.
In Drywall system and drywall partition system, we could provide roll forming machine as following:
1. Metal stud roll forming machine
2. Metal track roll forming machine

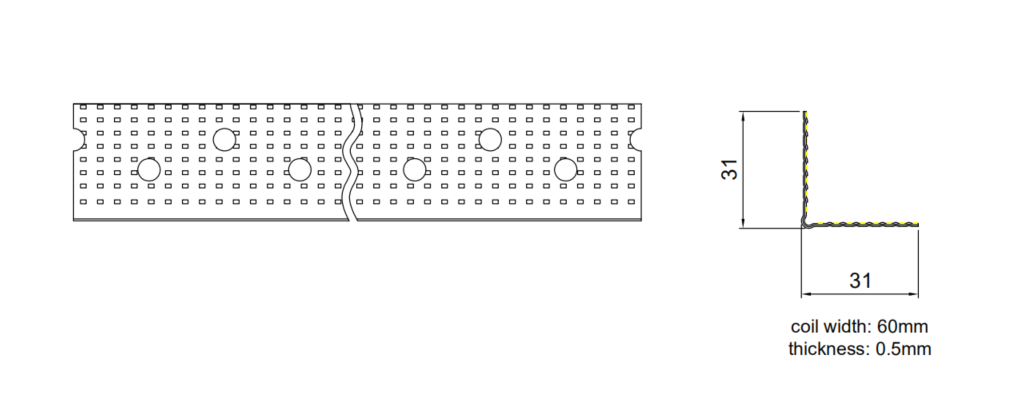

3. Conner bead (Angle bead) roll forming machine
4. DUO6 shadow line wall angle
In Construction Industries, we are able to manufacture more machines like purlin roll forming machine, drywall roll forming machine, stud&track roll forming machine, metal deck(floor deck) roll forming machine, vigacero roll forming machine, roof/wall panel roll forming machine, roof tile roll forming machine etc.
We could make roll forming machine with flying cut system to make working speed faster around 40m/min. And according to your drawing, we offer you double-row roll forming machine or triple-row roll forming machine that you could make two or three profiles in one machine, it reduces your machine cost and make it more affordable.
Linbay make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your every need. Whichever line you choose, the quality of Linbay Machinery will ensure you obtain perfectly functional profiles.
Profiles
Whole Production Line of Light Gauge Steel Roll Forming Machine
Technical Specifications
| Light Gauge Steel Roll Forming Machine | ||
| Machinable Material : | A) Galvanized Coil | Thickness(MM):0.4-1.2 |
| B) PPGI | ||
| C) Carbon steel Coil | ||
| Yield strength : | 250 - 350 Mpa | |
| Tensil stress : | 350 Mpa-550 Mpa | |
| Nominal forming speed(M/MIN) | 10-40 | * Or according to your requirement |
| Forming station : | 8-14 | * According to your profile drawings |
| Decoiler : | Manual decoiler | * Hydraulic decoiler (Optional) |
| Punching system | Hydraulic punching | * Punching press (Optional) |
| Main machine motor brand : | Sino-Germany Brand | * Siemens (Optional) |
| Driving system : | Chain drive | * Gearbox drive (Optional) |
| Machine structure: | Wall panel station | * Forged Iron station Or torri stand structure (Optional) |
| Rollers’ material : | Steel #45 | * GCr 15 (Optional) |
| Cutting system : | Post-cutting | * Flying cutting (optional) |
| Frequency changer brand : | Yaskawa | * Siemens (optional) |
| PLC brand : | Panasonic | * Siemens (optional) |
| Power supply : | 380V 50Hz | * Or according to your requirment |
| Machine color : | Industrial blue | * Or according to your requirment |
Purchase Service
Q&A
1. Q: What kinds of experience do you have in producing light gauge steel roll forming machine?
A: We have exported light gauge steel roll forming machine to India, Serbia, UK, Peru, Argentina, Chile, Hondulas, Bolivia, Egypt, Brazil, Poland, Russia, Spain, Romania, Philippines, Hungary, Kazakhstan, Australia, USA etc.
In Construction Industries, we are able to manufacture more machines like main channel roll forming machine, furring channel roll forming machine, ceiling T bar roll forming machine, wall angle roll forming machine, purlin roll forming machine, drywall roll forming machine, stud roll forming machine, track roll forming machine, top hat roll forming machine, clip roll forming machine, metal deck(floor deck) roll forming machine, vigacero roll forming machine, roof/wall panel roll forming machine, roof tile roll forming machine etc.
Simply the best steel frame roll forming machine for your project.
2. Q: How many profiles can produce this machine?
A: According to your drawing, we offer you double-row roll forming machine or triple-row roll forming machine that you could make two or three profiles in one machine, it reduces your machine cost and make it more affordable. It’s your best and affordable choice for steel frame.
3. Q: What is delivery time of light gauge steel roll forming machine?
A: 60 days to 70 days depends on your drawing.
4. Q: What is your machine speed?
A: Normally forming speed is around 40m/min.
5. Q: How could you control your machine’s precision and quality?
A: Our secret to producing such precision is that our factory has its own production line, from punching moulds to forming rollers, each mechanical part is completed independently by our factory self. We strictly control the accuracy at each step from design, processing, assembling to quality control, we refuse to cut corners.
6. Q: What is your after-sales service system?
A: We don’t hesitate to give you a two-years warranty period for whole lines, five years for motor: If there will be any quality problems caused by non-human factors, we will handle it immediately for you and we will be ready for you 7X24H. One purchase, lifetime care for you.
1. Decoiler
2. Feeding
3.Punching
4. Roll forming stands
5. Driving system
6. Cutting system
Others
Out table
