Apejuwe
A ní iriri tiRussian iru Guardrail, ila mẹrin lo wa patapata: ①meji igbi guardrail eerun lara ẹrọ, ②U post eerun lara ẹrọ,③asopọ punching ilaati ④opin afẹfẹ punching ila.
EyiU Eerun Lara Machinele ti wa ni apẹrẹ fun sisanra 4-5mm, o ti wa ni o gbajumo ni lilo bi post ti guardrail. A lo awọn iduro irin eke (wo aworan) ati wiwakọ apoti lati rii daju pe ẹrọ yii le ṣiṣẹ pipẹ ni ipo iduroṣinṣin.

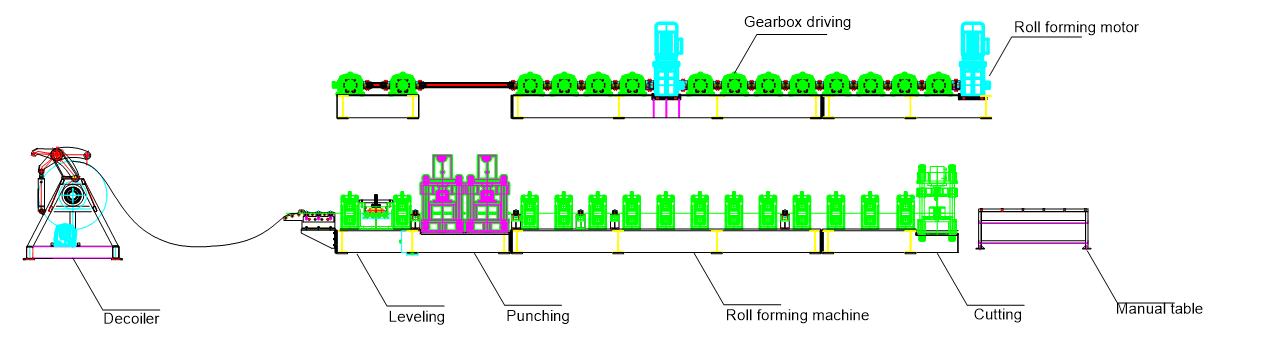

Aworan sisan ti ẹrọ didasilẹ U post roll:
Hydraulic decoiler-Leveling-Punching-Roll dida ẹrọ-Gege-Tabili
Imọ ni pato
| Meji igbi / Mẹta igbi Highway Guardrail eerun Lara Machine | |||
| Rara. | Nkan | Sipesifikesonu | iyan |
| 1 | Ohun elo ti o yẹ | Iru: Ẹka Galvanized, PPGI, Erogba Irin Coil | |
| Sisanra (mm): 4-5 | |||
| Agbara ikore: 250 - 550MPa | |||
| Tensil wahala ( Mpa): G350Mpa-G550Mpa | |||
| 2 | Iyara idaruda orukọ (m/min) | 15 | Tabi gẹgẹ bi ibeere rẹ |
| 3 | Ibi iduro | 10-12 | Ni ibamu si profaili rẹ |
| 4 | Decoiler | Hydraulic decoiler | |
| 5 | Main ẹrọ motor | Sino-German Brand | Siemens |
| 6 | PLC brand | Siemens | Panasonic |
| 7 | brand inverter | Yaskawa | |
| 8 | Eto awakọ | Gearbox wakọ | Wakọ pq |
| 9 | Rollers 'ohun elo | K12 | GCr15 tabi # 45 Irin |
| 10 | Ibusọ ibudo | eke Iron ibudo | Odi nronu ibudo Tabi torri duro be |
| 11 | Punching eto | No | Hydraulic punching station tabi Punching press |
| 12 | Eto gige | Post-Ige | Pre-Ige |
| 13 | Ipese agbara ibeere | 380V 60Hz | Tabi gẹgẹ bi ibeere rẹ |
| 14 | Awọ ẹrọ | Buluu ile-iṣẹ | Tabi gẹgẹ bi ibeere rẹ |
Awọn aworan diẹ sii
1. Decoiler
2. Onjẹ
3.Punching
4. Eerun lara awọn iduro
5. Eto awakọ
6. Ige eto
Awọn miiran
Jade tabili
